Eco-Rainwater Tank Joining Clips / Landscape Gardening

Over several years Engineers have asked "how do you join the boxes together" we have now come up with the answer to this question by creating a CLIP that can join our tanks width wise as well as length wise.

The option to use these clips are:
1) In the outside walls of the Modular tanks
2) Everywhere to include inner walls before a new row of Modular tanks is installed
To facilitate this we have also created an App. to calculate the number of clips needed with either option.

We Vikas Industries are Manufacturers, Exporters & Leading Suppliers of Eco-Rainwater Tank Joining Clips Loacated in Andheri, Mumbai, India.

System Benefits

• Economical and easy to install, compare to cable ties or zip ties.

• Secure the tanks width and length

• Allow the installers to review with one look if the installation is evenly done.

• Allow the installer to confirm that proper installation has been done as everything will be level

• The cost saving to you are: less labor intensive and simple, effective and secure even lock of the Modular Tanks

• Using these Clip systems will allow for secure walking over the Modular Tanks during installation.

• Allow for Engineers and Architects to correctly ensure that all modular tanks will be fully butted to each other, creating a very solid lockable and stable structure, before compaction of fill around the sides of the Modular Tanks.

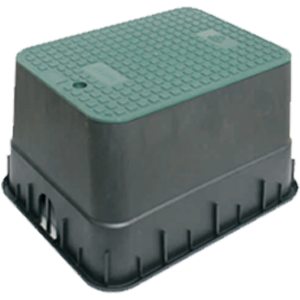

Rectangular Valve Box - Series 1419-12"


Rectangular Valve Box - Series 1419-12
Product Name Description Bottom Side Top Side Height
Length Width Length Width Length Width
Inches mm Inches mm Inches mm Inches mm Inches mm
12" Valve Box Series 1419-12" Rectangular Valve Box (Virgin) 12.51" 546.6 17.18" 436.6 18.24" 463.5 12.98" 329.83 12.25" 311.30
12" Valve Box Series 1419-12" Rectangular Valve Box (Recycled) 12.51" 546.6 17.18" 436.6 18.24" 463.5 12.98" 329.83 12.25" 311.30


Series 1419-12" Rectangular Valve Box Series 1419-12" Rectangular Valve Box
Material PP - COPOLYMER - 100% PP - COPOLYMER - Recycled
Biological and Chemical Resistance UV resistant and unaffected by Bacteria - Algae, Soil - Bourne chemicals UV resistant and unaffected by Bacteria - Algae, Soil - Bourne chemicals
Damper Proof Yes Yes
Availability Lids are available in Green and Black Colour Lids are available in Green and Black Colour


Silent Features

  • A durable round valve box ideal for residential installation
  • Original twist lock design cover
  • Easy storage
  • Pipe cutouts allow for quick and easy installation

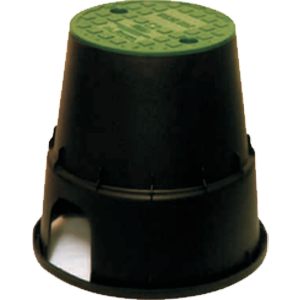

Round Valve Box - 610-6”


Round Valve Box -  610-6
Product Name Description Top Diameter Bottom Diameter Height
Inches mm Inches mm Inches mm
6" Valve Box Series 610-6" Round Valve Box (Virgin) 6.37" 162 9.52" 242 9.06" 230
6" Valve Box Series 610-6" Round Valve Box (Recycled) 6.37" 162 9.52" 242 9.06" 230


Series 610-6" Round Valve Box Series 610-6" Round Valve Box
Material PP - COPOLYMER - 100% PP - COPOLYMER - Recycled
Biological and Chemical Resistance UV resistant and unaffected by Bacteria - Algae, Soil - Bourne chemicals UV resistant and unaffected by Bacteria - Algae, Soil - Bourne chemicals
Damper Proof Yes Yes
Availability Lids are available in Green and Black Colour Lids are available in Green and Black Colour


Ultimate Load / Unconfined Crush Testing

Sr. No. Item No Load
KN In Ton Ton / sq.m
1 Series - 610.6" Round Valve box Virgin 12 1.223 67.198
2 Series - 610.6" Round Valve box Recycled 9 0.917 50.38

Silent Features

  • A durable round valve box ideal for residential installation
  • Original twist lock design cover
  • Easy storage
  • Pipe cutouts allow for quick and easy installation

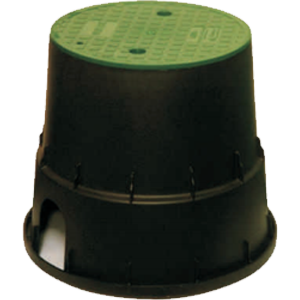

Round Valve Box - 910-10”


Round Valve Box -  910.10
Product Name Description Top Diameter Bottom Diameter Height
Inches mm Inches mm Inches mm
10" Valve Box Series 910.10" Round Valve Box (Virgin) 9.92" 252 13.15" 334 10.24" 260
10" Valve Box Series 910.10" Round Valve Box (Recycled) 9.92" 252 13.15" 334 10.24" 260


Series 910.10" Round Valve Box Series 910.10" Round Valve Box
Material PP - COPOLYMER - 100% PP - COPOLYMER - Recycled
Biological and Chemical Resistance UV resistant and unaffected by Bacteria - Algae, Soil - Bourne chemicals UV resistant and unaffected by Bacteria - Algae, Soil - Bourne chemicals
Damper Proof Yes Yes
Availability Lids are available in Green and Black Colour Lids are available in Green and Black Colour


Ultimate Load / Unconfined Crush Testing

Sr. No. Item No Load
KN In Ton Ton / sq.m
1 Series - 910.10" Round Valve box Virgin 24 2.446 48.340
2 Series - 910.10" Round Valve box Recycled 21 2.140 42.292

Silent Features

  • A durable round valve box ideal for residential and commercial installation
  • Original twist lock design cover and easy storage
  • Round Valve box has an extra support for heavy load
  • Pipe cutouts allow for quick and easy installation
