Drainage Cell / Landscape Gardening


Drainage Cell System provides a perfect solution for a sub soil drainage application also for creating a successful Roof Garden.


The 20mm,25mm,30mm,40mm Drainage Cells provides a uniform surface as well as an internal void space for effective draining of excess water for vertical or horizontal applications.


The 20mm,25mm,30mm,40mm Drainage Cells is made from recycled or VIRGIN Polypropylene that is inert to soil borne chemicals and bacteria. These cells have a shallow and effective drainage profile and ensures landscapers can make full use of mature plants on roof gardens that needs soil depth and water retention properties.


The 20mm,25mm,30mm,40mm Drainage Cell system has a unique octagonal design structure which provides water retention for passive irrigation and helps building a perch water table in the above soil profile for the vegetation to flourish in prolonged dry periods.



System Benefits

  • 4-5 Times more permeable than gravel drainage layer
  • Very high compressive load carrying capacity.
  • Very high horizontal and vertical flow capacity due to its unique three dimensional design.
  • Only removes excess water in Green roofs, planter boxes, sport fields.
  • Maintains actual void size for effective drainage after backfill & compaction.
  • Easy cut to suit as it comes in single pieces or factory pre-clipped panels of 1.00 X 1.2 metres.
  • Light weight +/- 2.5 kg/sqm compared to 250 +kgs/sqm of gravel for the same effective drainage and can reduce slab loads.
  • Creates a true void space between wall/slab and the backfill, creates a perch water table, providing air flow for ideal moist conditions for plant growth.
  • Hydrostatic pressure upon sub-grade walls is greatly reduce.
  • Easy to store and install as it comes in pre-clipped panels of 1.00 by 1.20 metres.
  • Environmentally friendly made from selected recycled polypropylene
  • Also available in Virgin Material if required.
  • It is the most efficient artificial aquifer as it recharges groundwater table through infiltration when used on natural ground surfaces.
  • There is no need for use of heavy machinery or skilled labour as it is light and simple to handle and install

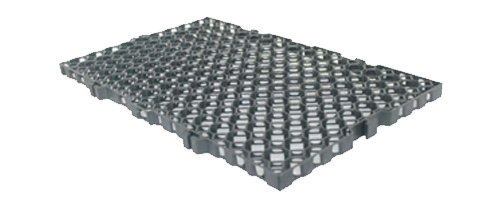

20mm Drainage Cell

20mm Drainage Cell
Standard Used Metric Imperial
Width 300mm 1'
Length 500mm 1.64'
Height 20mm 0.80"
Surface Area 90 to 95% void
Material 100% recycled polypropelene
Biological and Chemical Resistance Unaffected by moulds and algae, soil borne chemicals, bacteria and bitumen
Service Temperature -30°C to 120°C -22°F to 248°F
Compressive Strength / Ultimate Load ASTM D1621 ± 139.85 t/m2 ± 202.10 psi
Flow Rate per Unit Width ASTM D4716 > 80Lt / min > 21.00 gals / min
Note Consider load test there may be variation of ± 10% to 20%

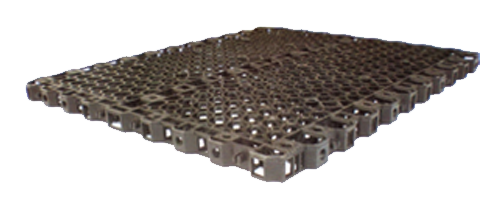

25mm Drainage Cell

25mm Drainage Cell

Standard Used Metric Imperial
Width 500mm 1.64'
Length 600mm 1.97'
Height 25mm 1.0'
Surface Area 50 to 70% void
Material 100% recycled polypropelene
Biological and Chemical Resistance Unaffected by moulds and algae, soil borne chemicals, bacteria and bitumen
Service Temperature -30°C to 120°C -22°F to 248°F
Compressive Strength / Ultimate Load ASTM D1621 ± 205.56t/m2 ± 306.80 psi
Flow Rate per Unit Width ASTM D4716 > 120 Lt / min > 31.70 gals / min
Note Consider load test there may be variation of ± 10% to 20%

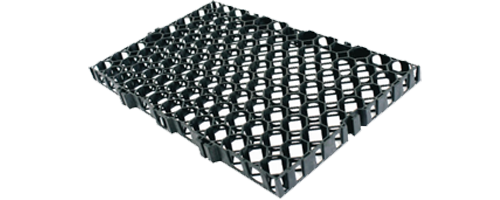

30mm Drainage Cell

30mm Drainage Cell

Standard Used Metric Imperial
Width 300mm 1'
Length 500mm 1.64'
Height 30mm 1.80'
Surface Area 90 to 95% void
Material 100% recycled polypropelene
Biological and Chemical Resistance Unaffected by moulds and algae, soil borne chemicals, bacteria and bitumen
Service Temperature -30°C to 120°C -22°F to 248°F
Compressive Strength / Ultimate Load ASTM D1621 ± 121.21t/m2 ± 172.40 psi
Flow Rate per Unit Width ASTM D4716 > 120 Lt / min > 31.70 gals / min
Note Consider load test there may be variation of ± 10% to 20%

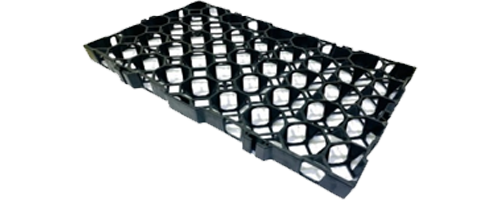

40mm Drainage Cell

40mm Drainage Cell

Standard Used Metric Imperial
Width 300mm 1'
Length 500mm 1.64'
Height 40mm 1.57'
Surface Area 90 to 95% void
Material 100% recycled polypropelene
Biological and Chemical Resistance Unaffected by moulds and algae, soil borne chemicals, bacteria and bitumen
Service Temperature -30°C to 120°C -22°F to 248°F
Compressive Strength / Ultimate Load ASTM D1621 ± 141.21t/m2 ± 200.84 psi
Flow Rate per Unit Width ASTM D4716 > 160 Lt / min > 42.00 gals / min
Note Consider load test there may be variation of ± 10% to 20%

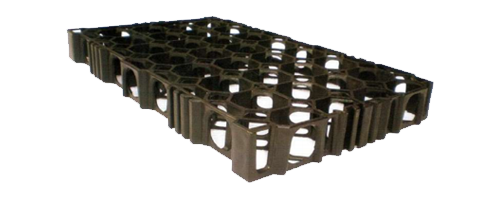

50mm Drainage Cell

50mm Drainage Cell

Standard Used Metric Imperial
Width 300mm 1'
Length 500mm 1.64'
Height 50mm 2.0"
Surface Area 90 to 95% void
Material 100% recycled polypropelene
Biological and Chemical Resistance Unaffected by moulds and algae, soil borne chemicals, bacteria and bitumen
Service Temperature -30°C to 120°C -22°F to 248°F
Compressive Strength / Ultimate Load ASTM D1621 ± 244.97t/m2 ± 348.42 psi
Flow Rate per Unit Width ASTM D4716 > 212 Lt / min > 56.00 gals / min
Note Consider load test there may be variation of ± 10% to 20%

Products must have a maximum deformation of < 25%
Compressive strength test - filled with sand

filled with sand Area (mm2) Area (inches2) Load (kg) Load (LBS) Compressive Strength (t/m2) Compressive Strength (PSI)
54554.73 84.56 231332.1 510000 +-5201.01 +-7395

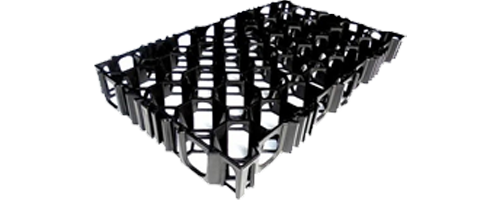

50mm Grass Paver

50mm Grass Paver

50mm Drainage Cells or Grass or Turf & Gravel Pavers Eco-Rainwater® 50mm Drainage Cell is a plastic cell structure designed for the creation of permeable grass/gravel areas subject to pedestrian and vehicular traffic, it is lightweight, easy to install and with excellent high strength interlocking system.


The cell structure provides high load bearing capacity and real containment of soil mix / gravel to create a permeable surface, due to its unique three dimensional design, it can withstand heavy traffic for parking lots without traditional problems associated with permeable paving such as overheating and compaction of the root zone. The system can be used for storage, dispersion of cold or heat, reducing hydrostatic pressure for high water table and for filtration of rainwater as well as filled grass or gravel as porous pavers.


We Vikas Industries are Manufacturers, Exporters & Leading Suppliers of Drainage Cell Loacated in Andheri, Mumbai, India.


System Benefits

  • Strongest and best clip product in the market
  • Very high compressive load bearing capacity.
  • EcoRain/Eco-Rainwater 50mm Cell Structure allows for three dimensional vertical & horizontal root growth
  • Maintains actual void size for effective drainage & root growth after backfill & compaction
  • Cells can easily be cut to required size
  • Easy to store and install and comes in preclipped panels.
  • Environmentally friendly made from selected Recycled Polypropylene
  • Also available in Virgin Material if required.
  • Light weight and easy to install no need for heavy machinery or skilled labour.
  • Creates permeable surface and reduces heat or cold.
  • Reduces Stormwater runoff rate if used as permeable grass or gravel pavers.
  • Complies with Water Sensitive Urban Design
